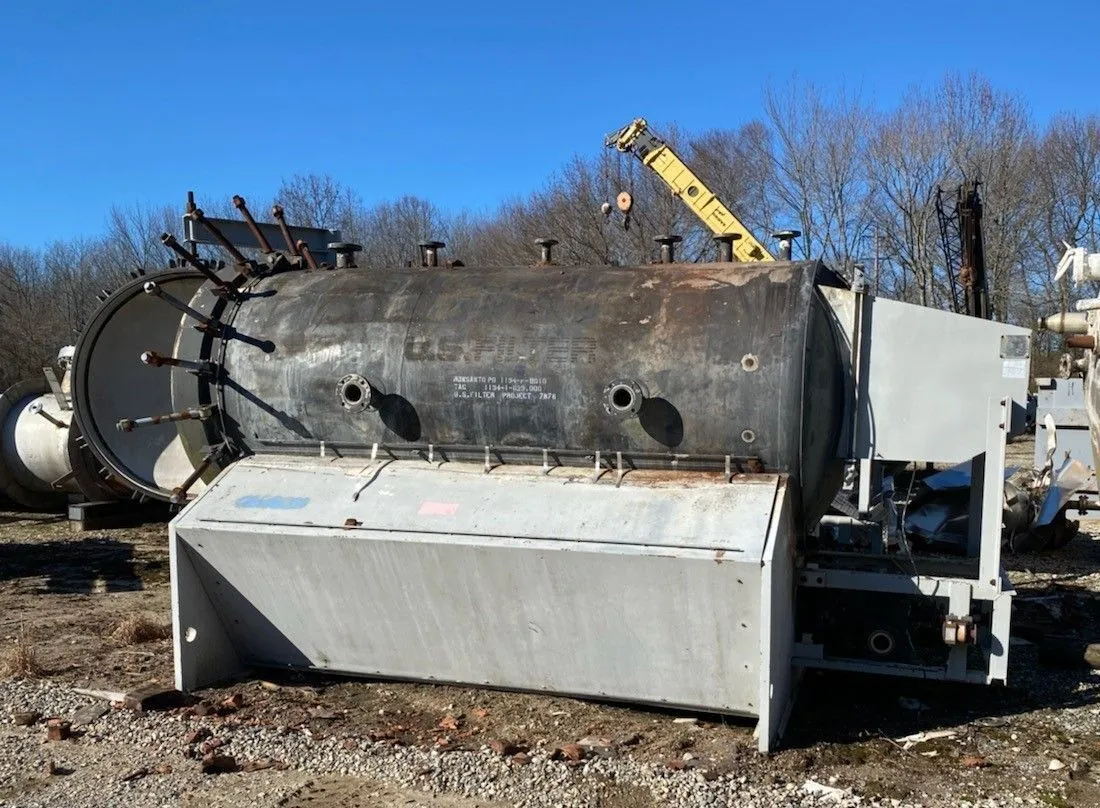

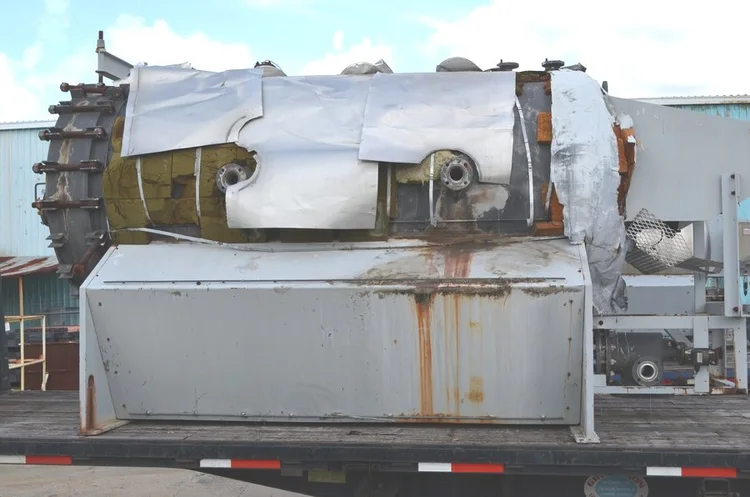

US Filter Pressure Leaf Filter. 800 Sq.Ft. Auto Jet
Have one to sell?
ConditionUsed
1 available
used US Filter Pressure Leaf Filter. 800 Sq.Ft. Auto Jet. MAWP 150/FV @ 400 deg.F. MDMT -20 deg.F @ 150 PSI. Shell is 4'6" Dia. x 10'6" lgth (~12'L entire chamber including heads). 190" OAL. Inlet (2) 3", Outlet 6", Spray Header 3", Drain 10". Material 316 Stainless steel. Inside pipe is 5.5" Dia. with (27) Holes. No Elements. 48" Filter Elements sold separately. Elements can be ordered to suit.
used US Filter Pressure Leaf Filter. 800 Sq.Ft. Auto Jet. MAWP 150/FV @ 400 deg.F. MDMT -20 deg.F @ 150 PSI. Shell is 4'6" Dia. x 10'6" lgth (~12'L entire chamber including heads). 190" OAL. Inlet (2) 3", Outlet 6", Spray Header 3", Drain 10". Material 316 Stainless steel. Inside pipe is 5.5" Dia. with (27) Holes. No Elements. 48" Filter Elements sold separately. Elements can be ordered to suit.
Imperial
| Material | 316L STAINLESS STEEL |
| Type | PRESSURE LEAF |
| Capacity | 800 Sq.Ft. |
| Weight | 20000 |
