CHARLES ROSS MODEL PD-2 APPROXIMATELY 2 GALLON DUAL SHAFT VACUUM MIXER

Description

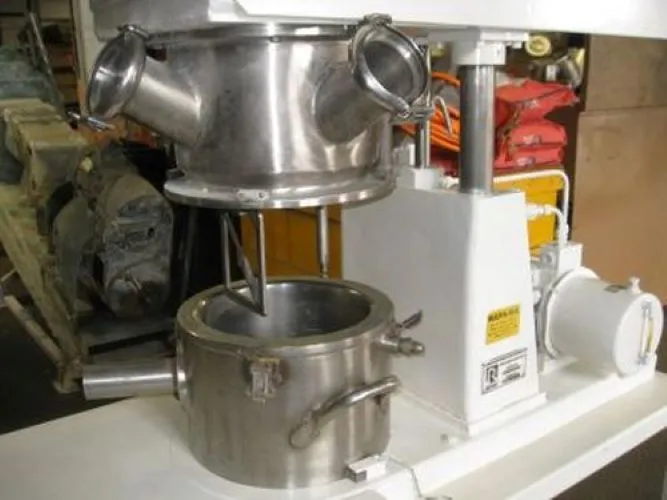

USED CHARLES ROSS MODEL PD-2 APPROXIMATELY 2 GALLON DUAL SHAFT VACUUM MIXER. T-304 STAINLESS STEEL CONTACT PARTS. 1/3HP 1/60/115-230 VOLT 6/3 AMP 1725 RPM EXPLOSION PROOF HYDRAULIC LIFT DRIVE. 1HP 3/60/208-230-460 VOLT MOTOR AND 25:1 RATIO GEARBOX EXPLOSION PROOF PLANETARY DRIVE. 2HP 3/60/208-230-460 VOLT 5.7-5/.4/2.4 AMP 3450 RPM EXPLOSION PROOF HIGH SPEED DISPERSER DRIVE. FEATURES VACUUM HOOD ON BOWL. JACKETED CHANGE CAN. PREVIOUSLY USED IN A PHARMACEUTICAL R & D RESEARCH LABORATORY. S/N 51854. VIDEO AVAILABLE UPON REQUEST. VERY GOOD CONDITION. OAD: 40" WIDE X 48" LONG X 71" HIGH WITH APRON OFF. 1015# WEIGHT. INCLUDES ONE (1) USED ROSS MIXER CONTROL SETUP FOR THE CUSTOMER TO RETROFIT. HAMMOND APPROXIMATELY 24" WIDE X 24" LONG X 8" HIGH UL LISTED ENCLOSURE. FEATURES (2) RELIANCE ELECTRIC A-C VARIABLE DRIVE CONTROLS. CONTROL SCHEMATIC DRAWING #C3563. DATED 3/17/88. S.O. #51854. ALSO INCLUDES APPROXIMATELY 12" WIDE X 16" LONG EXPLOSION PROOF ENCLOSURE FEATURING (2) VARIABLE FREQUENCY READOUTS. BUTTONS INCLUDE START STIRRER, BLADE SPEED, START BLADE, OFF/RAISE/LOWER, STOP STIRRER, STIRRER SPEED, STOP BLADES AND EMERGENCY STOP CONTROLS. ALSO INCLUDES APPROXIMATELY 8" WIDE X 10" LONG ENCLOSURE WITH TIMER CONTROL. CONTROL CABINET REPLACEMENT COST OVER $8500. VERY GOOD CONDITION WHEN REMOVED FROM SERVICE. BUYER IS RESPONSIBLE FOR CORRECT HOOKUP.
