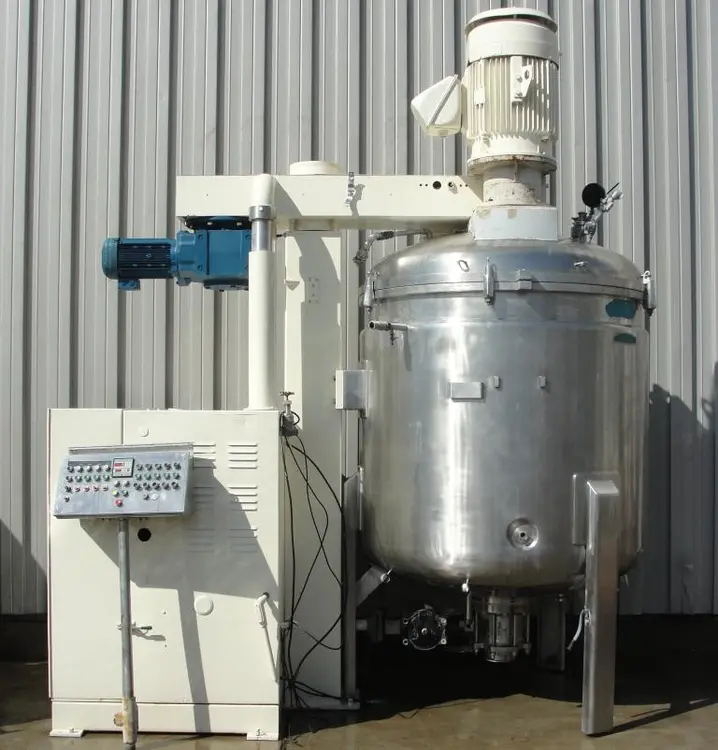

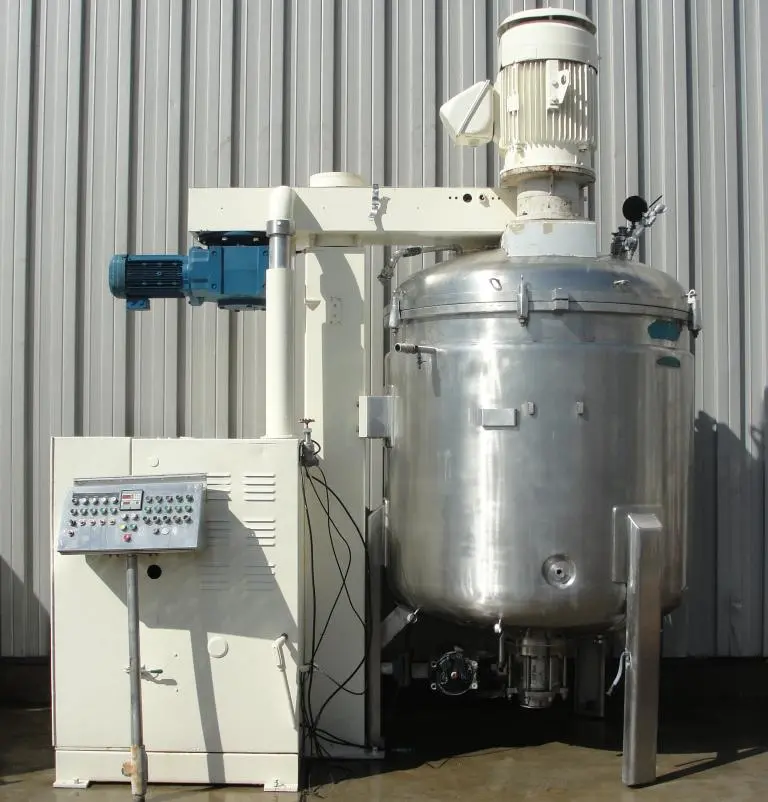

2400 Liter working capacity Fryma model VME 2400 vacuum mixer

Description

2400 Liter working capacity Fryma model VME 2400 vacuum mixer (~650 gallon), triple shaft, tri-shaft mixer. Fabrication # M10510. The tank has an overall height is 101" to top of lid including legs. It is 87" to the top with the lid removed. The overall diameter of tank with jacket is 63". The interior dimensions are 61" diameter with 54" straight side height, 11" dome top and 11" dish bottom. Working temperatures are 150 c for the interior and the jacket. The interior has a pressure rating of -1/+1 bar and the jacket has a 2.5 bar rating. There
are two agitator drives, a 7.5 hp motor drives a center 3 prop agitator and a scrape agitator through a chain drive and a 50 hp motor drives a disperser type agitator off to the side of the center shaft. The top has an 8" flanged opening that is clamped shut and 6" glass inspection port with light. Top also has a 2" sanitary, 1.5" sanitary, and (2) 1" threaded fitting. The bottom has a 6" sanitary discharge with a pneumatically operated valve. Requires 230/ 460 vac 3 phase electrical supply. Previously used for toothpaste. Good Condition.
