4500 Gallon, 304 Stainless Steel Clad, Rated 2070 PSI @ 200 F. Pressure vessel
Have one to sell?
ConditionUsed
1 available

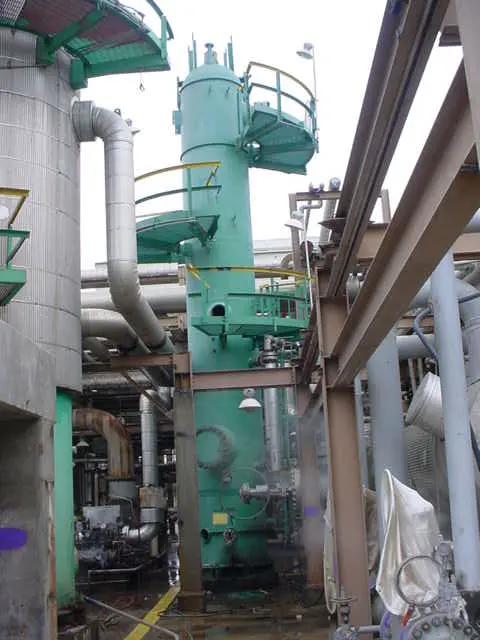

4500 Gallon, 304 Stainless Steel Clad, Rated 2070 PSI @ 200 F. High Pressure vessel. 4'6" ID x 36'6" T/T. Vertical mounted on Skirt. Built to ASME Sec. VIII, Div.2 code. Built by Wyatt. National Board # 4059. High Pressure Separator. Approx weight 82,000 LBS.
4500 Gallon, 304 Stainless Steel Clad, Rated 2070 PSI @ 200 F. High Pressure vessel. 4'6" ID x 36'6" T/T. Vertical mounted on Skirt. Built to ASME Sec. VIII, Div.2 code. Built by Wyatt. National Board # 4059. High Pressure Separator. Approx weight 82,000 LBS.
Imperial
| Gallons | 4500 gal |
| PSIG | 2070 |
| ID - Inches | 54 in |
| Length | 36'6" |
| Temp (F) | -10/200 |
| Material | 304 SS CLAD |
| Vert/Horiz | V |
| Stamped | NB 4059, ASME |
| Weight | 82000 |
