PFAUDLER 300 GALLON MODEL R POLISHED T-316L STAINLESS STEEL REACTOR

PFAUDLER 300 GALLON MODEL R POLISHED T-316L STAINLESS STEEL REACTOR

Have one to sell?
1.856.299.4500
sales@ecrecon.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
REACTORS
Manufacturer:
PFAUDLER
Model:
R
Stock #:
REA-415
Status:
For Sale

Description

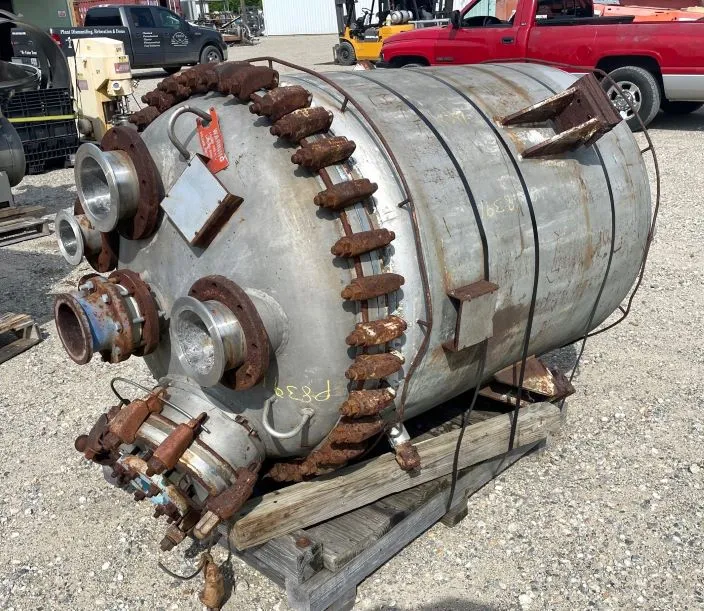

USED PFAUDLER 300 GALLON MODEL R POLISHED T-316L STAINLESS STEEL REACTOR. INTERNAL RATED 100 PSI AND FULL VACUUM @ 400 Deg.F. T-304 JACKET RATED 85 PSI @ 400 Deg.F, 70 PSI WHEN FULL VACUUM. 42" DIAMETER X 48" STRAIGHT SIDE. DISHED CLAMP TOP WELDED BOTTOM. 14" X 18" MANWAY WITH SIGHT GLASS. (2)6" & (3)4" TOP NOZZLES. 3" CENTER BOTTOM OUTLET. (4) PIPE SOCKETS FOR LEGS & LUGS. S/N R384-1239. NB #43398. BUILT 1985. OAD: 54" WIDE X 110" LONG X 52" HIGH.

Gallons300 gal
Dia. Inches42"42"
Length (T/T)48"48"
Shell PSIG100/FV100/FV
Shell (F)400400
Shell Material316L STAINLESS STEEL316L STAINLESS STEEL
Jacket PSIG8585
Jacket (F)400400
Jacket Mat304 STAINLESS STEEL304 STAINLESS STEEL
StampedNB 43398NB 43398
Qty.11
Weight3000 LBS3000 LBS
